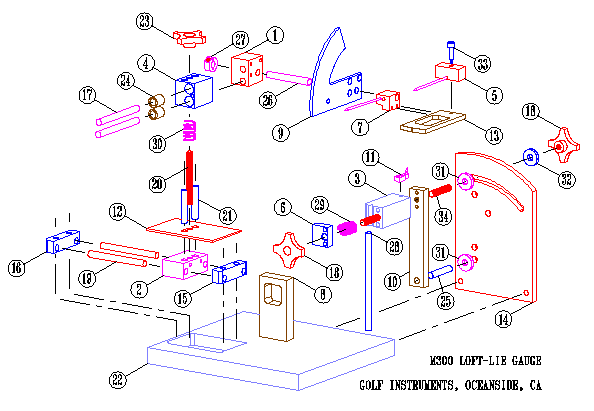

Parts List - M300

1	1001	Horizontal Bearing Block	$41.34
2	1002	Main Horizontal Slide	55.12
3	1003	Club Clamp	61.48
4	1004	Linear Bearing Block	57.24
5 5 5 5	1005 1035 1046 GX-301	Face Angle Pivot Block 9/16" pin spacing or Face Angle Pivot Block 1/2" pin spacing or Face Angle Pivot Block 1" pin spacing or Face Angle Pivot Block 3/4" pin spacing	28.62 28.62 30.00 30.00
6	1006	Compression Clamp/2 dowel pins	20.14
7	1007	Loft Swivel Mount/pointer	25.44
8	1008	Face Angle Square/2 dowel pins	26.50
9	1009	Loft Plate	49.82
10	1010	Lie Bar	27.56
11	1011	Lie Pointer Assembly	16.96
12	1012	Slide Cover Plate	15.37
13	1013	Face Angle Plate	36.04
14	1015	Lie Plate	68.90
16	1029	Guideway Holder	18.29
17	1031	Linear Bearing Block Rods (Pair)	19.08
18	1039	Club Clamp and Lie Knob (same part)	3.71
19	1030	Main Slide Rods	16.96
20	1028	5/16 Stud included with 1002	1.60
21	1022	3/8"X 21/4" Dowel Pin	1.60
22	1021	Base Plate	143.10
23	1038	Vertical Adjustment Knob	3.71
24	1040	Linear Bearings--each	21.80
25	1032	Lie Bar Pivot Dowel 2"X 3/8"	1.60
26	1042	Loft Pivot Dowel Pin 3/8"X 3"	2.00
27	1033	Clamp ring 3/8"	3.25
28	1034	Setting Rod 3/8"	3.00
29	1037	Club Clamp Spring	2.80
30	1036	Linear Bearing Block Spring	2.80
31	1044	Precision Washers	2.10
32	1045	Lie Clamp Washer	1.00
33	1041	Face Angle Pivot Screw	1.25
34	1043	Lie Clamp Stud	1.25
